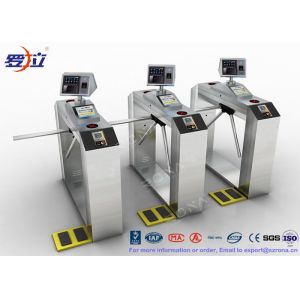

    DC Servo Motor Turnstile Security Systems Supermarket Speed Pedestrian Access Gate

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF H8008-2
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : T/T,
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    DC Servo Motor Turnstile Security Systems Supermarket Speed Pedestrian Access Gate

    Access Supermarket Speed Gate Turnstile Entrance System,Pedestrian Access Gate



    TECHNICAL DETAILS:

    1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

    2. With normally open & normally closed working mode

    3. Real time failure self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation.

    4. With direction indication, guiding passenger to entry and exit.

    5. Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000. (Optional)

    6. Sound/light (Light is optional) alarm indication function, preventing illegal entry or irregular passing.

    7. After the system power is cut off, the plate barrier starts the standby power to withdraw the barrier, so that the passage is ensured to be smooth and to divert the flow of passenger timely.

    8. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.

    9. The treatment mode in emergency or in special conditions.

    10. Super strong combination capability, with the combined application of products of different passage types and series, not affecting the system performance.

    11. Strong system expending capability, available to add new product at any time.

    12. Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection.


    SPECIFICATIONS:


    Framework

    304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)

    Thickness of ply

    1.7mm

    Finish

    brushed surface, polishing surface

    Shell's size (L*W*H)

    1600mm*160mm*1000mm (default)

    Swing arm material

    Tempered glass or Acrylic (optional)

    Stretching out swing length

    260mm~600mm

    The inductive card reader dimension

    equipped with the standard mounting brackets or tailor.

    Machine center

    Germany technological motor

    Power voltage

    AC220V±10%, 50Hz±10%

    Driver motor

    DC36 servo motor

    Main-board voltage

    12V DC

    In-built Infrared

    6 pairs/passageway

    Passing speed in normally open mode

    50 persons/min

    Passing speed in normally closed mode

    40 persons/min

    Passage Width

    600mm ~1200mm

    Swing arm transmission angle

    180°

    Swinging direction

    unidirectional or bi-directional

    Opening / closing time

    0.1 seconds

    The time required to running state after power on

    3 seconds

    Automatic reset time after the failure

    1 seconds

    Mean time to failure

    min. 5 000 000

    Operation temperature

    -10℃ ~ +70℃

    Relative humidity

    less than 95% not condensed

    Working Environment

    Indoor/Outdoor (with rain-tent cover)

    Input port

    relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal

    Communications port

    RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet


    APPLICATIONS:

    Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Buildings, Banks, Museums and Airports, etc high-end places.


    OPTIONAL & CUSTOMIZED FUNCTIONS:

    • -> Alternative Materials, Finished and Custom Design

    • -> Usage LED Counter function

    • -> Audio and visual alarm in the event of an invalid entry or exit and tailgating

    • -> Remote Controlled Button

    • -> Extra add sensors transmitter and receiver type

    • -> Infrared sensors reset function

    • -> Access Control System Integration

    • -> Camera System Integration

    • -> Thermostat System Integration

    • -> Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.

    • -> Stroboscopic alarm light prompt function: to help for site administrator to find the failure units fast and exactly.
